MSRP : $ 68.50
TYPE 24 3.0" Service Chamber 10" Rod
3.0” Long Stroke Service Brake Chamber with 10” Rod

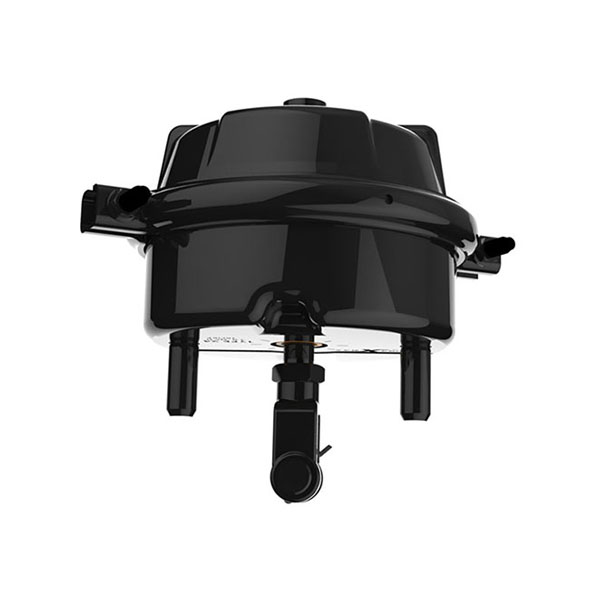

Product Name: DuraMax DMS24E Service Brake Chamber
Part Number: 21000-C1GG0
Brake Size: 24
Air Port Size: 3/8-18 NPTF
Mounting Bolt: 5/8-11-UNC-2A
Mounting Bolt Length: 1.55 in. (39.5mm)
Pushrod Thread: 5/8-18-UNF-2A
Stroke Alert Indicator
- Reinforced Formed Steel Pressure Cap Housing
- Heavy-Duty Bottom Non Pressure Housing Assembly
(7 Gauge Standard)
- Heavy Duty Nylon Fabric Reinforced Diaphragm
- Tamper Resistant Continue Sealing Design
- Corrosion Resistance e-Coating Standard
(Special Atmospheric additional Top Coat Optional)
- Integral Composition Injection Plastic Center Hole Shield Guide
- Top and Side Air Port
- Welded Mounting Bolts
- Continuous seal
|STROKE||3" / (76.2mm)|
|Wt. lb (kg)||8.8 lb (4kg)|
|B (MTG BOLT)||5/8-11-UNC-2A|
Note1. DIMENSION "4" MEASURED WITH MAIN SPRING COMPRESSED PNEUMATICALLY
2. PRODUCT PERFORMANCE MEET SAE J2318 STANDARD.
3. PRODUCT COMPLIANCE TO FMVSS121 REGULATIONS
|Cross Reference Item||ALLIANCE|
|DMS24E||C24L||1428001||SC24XL||ABP N42A 24SC3ND||24SCN3|
