MSRP : $ 274.32
TYPE 2424 Long Stroke Piston Chamber with 10" Rod
Equipped with Breather

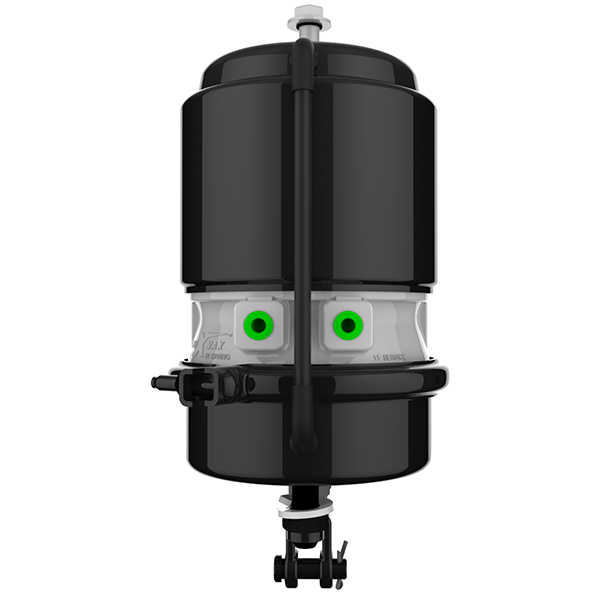

2424 3.0” Long Stroke Piston Type Brake Chamber with 10” Push Rod LengthProduct Name: DuraMax DMP2424ET Piston Type Brake Chamber with Breather Tube
Part Number: 21000-C7GT0
Service Brake Size: 24
Parking Brake Size: 24
Air Port Size: 3/8-18 NPTF
Mounting Bolt: 5/8-11-UNC-2A
Mounting Bolt Length: 1.55 in. (39.5mm)
Pushrod Thread: 5/8-18-UNF-2A
Stroke Alert Indicator
Max. Operating Air Pressure: 150 psi
Over 500 lbf more extra Parking Force Compare to Double Diaphragm Brake Chamber
Interchangeable as replacement for other makes of conventional Spring Brakes.
- Over 500 lbf more extra Parking Force
- Compact Design to Fits in tight area
- Minimum Protrusion of Release Bolt
- Reinforced Design Cover Head Housing
- Heavy-Duty Bottom Non Pressure Housing Assembly
(7 Gauge Standard) - Deep Lock-in Design Clamp Band
- Stroke Alert Indicator
- Heavy Duty Nylon Fabric Reinforced Diaphragm
- Non Coil-Clash Long Life Super High-Force Power Spring
- Tamper Resistant Design
- Long Life Urethane Composition Push-Rod Seal and Guide
- Corrosion Resistance e-Coating Standard
(Special Atmospheric additional Top Coat Optional) - Integral Composition Injection Plastic Retainer Shield Guide
- Advanced Threaded Technology Aluminum Alloy Adopt Housing
- Welded Mounting Bolts
2424 Pisotn Drum Brakes External Tube 3" Long Stroke 10" Rod
| DMP2424ET | |
|---|---|
| SIZE | 2424 |
| STROKE | 3.0" (76.2mm) |
| Wt. lb (kg) | 20.2 lb (9.2kg) |
| 1 | 10.43" /265mm |
| 2 | 7.95±0.08" (202±2mm) |
| 3 | 1.5±0.08" (38±2mm) |
| 4 | 10±0.100" (254±2.54mm) |
| 5 | 4.75±0.04" (120.7±1mm) |
| 6 | 7.5"/190mm |
| 7 | 6.73"/171mm |
| A (PORT) | 3/8 -18NPTF |
| B (MTG BOLT) | 5/8-11-UNC-2A |
| C (P/ROD) | 5/8-18-UNF-2A |
| HOLD-OFF | 4.9bar/71psi |
| Release | 5.4bar/78psi |
Note
1. DIMENSION "4" MEASURED WITH MAIN SPRING COMPRESSED PNEUMATICALLY2. PRODUCT PERFORMANCE MEET SAE J2318 STANDARD.
3. PRODUCT COMPLIANCE TO FMVSS121 REGULATIONS
| Cross Ref Item |  |
| DMP2424ET | MJS2424ET |
